Special Order *Please Call*
Ships With: Operator’s Manual,
Lens Cover/Shroud, 1913 Mount, Padded Soft Case, (1) AA Battery, and Lens
Cleaning Kit
Certificate of Conformance, 1 Year Warranty
The Knight Vision® MIL Spec
AN/PVS-30 Clip-on Night Vision Weapon Sight, adds the latest high
performance Gen 3 light intensification night vision to most rifles and day
scopes. This product is appropriate for front line long range rifles. The
Knight Vision® patented technology makes the AN/PVS-30 universal and assures
the accuracy of your range-tested day scope boresight will not be degraded.

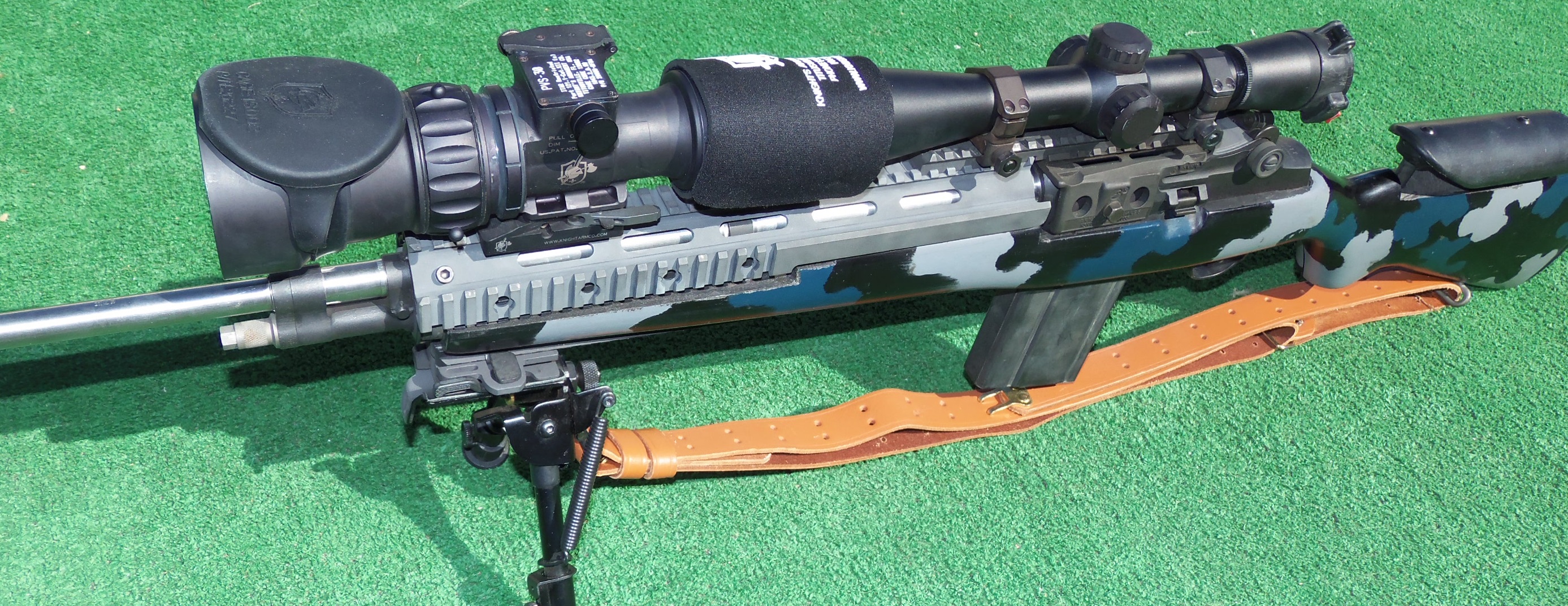

When the AN/PVS-30 is added in front of your Day Scope, your existing optic,
eye relief, and cheek weld are undisturbed. The refractive lens provides
high performance light collection in a light weight design. Knight Vision®
patented Single Interchangeable Battery (SIB)® allows use of either 123 or
AA single batteries, with a battery life exceeding 24 hours, and can be
changed while you remain in shooting position. The highly efficient power
circuit allows use of depleted flashlight batteries to provide several hours
of operation. The AN/PVS-30 night vision weapon sight is optimized and
tested for medium and long-range sniper weapons including .50 caliber
rifles.
AN/PVS-30
The UNS™ LR LP clip-on Weapon Sight (WS), Type Classified as
AN/PVS-30 adds the latest high performance Gen 3 light intensification
night vision to most rifles and day scopes by attaching to the picatinny
rail. This product is appropriate for front line long range rifles.
Within the Knight Vision product line this model is currently in
production for the US Army for use with the Knight’s Armament Company
Semi-Automatic Sniper System (SASS), and other long range sniper rifles.
The Knight Vision patented technology makes the product universal and
assures the accuracy of your range-tested day scope boresight will not
be degraded. When the AN/PVS- 30 is added in front, your existing optic,
eye relief, and cheek weld are undisturbed. The refractive lens
provides high performance light collection in a light weight design.
Knight Vision patented Single Interchangeable Battery (SIB)® allows use
of either CR123 or AA single cells, with a battery life exceeding 24
hours, and can be changed while you remain in shooting position. The
highly efficient power circuit allows use of depleted flashlight
batteries to provide several hours of operation. Single Interchangeable
Battery (SIB)® U.S. Patent No. 7,576,516.
|
Ordering
Information
|
|
AN/PVS-30-KAC
|
|
|
Specifications
(Preliminary)
|
|
Weight
|
2.9lbs (1.32 kg)
|
|
Size
|
9.6" (244 mm) long
|
|
Finish
|
Flat Black Matte or Desert Sand Brown, Corrosion Resistant
|
|
Controls
|
Pull On/off Gain Control Knob, Focus Ring
|
|
Power
|
One standard AA battery, or one DL123 battery (Single
interchangeable Battery)
|
|
Battery Life
|
AA Exceeds 24 hours, DL123 battery exceeds 36 hours
|
|
Mount
|
KAC Mount 26597 for Quick Attach/Detach to MIL-STD-1913 Rail or
equivalent mounting
|
|
Waterproof
|
3 ft. for 4 hours
|
|
Optical
Characteristics
|
|
Lens Design
|
120MM Refractive Telephoto Lens
|
|
Magnification
|
1X Unity
|
|
Focus Range
|
20 Meters to ∞ (Infinity)
|
|
Bore Sight
|
Patented (US Patient 7,142,357) alignment technology proven in
thousands of delivered sniper
sights
|
|
Image Intensification
|
ITT GEN 3 pinnacle tube "USA only" GEN 3: FOM
Restricted tubes available for export
|
|
Performance
Characteristics
|
|
Range
|
Recognize a Standard Man under Starlight: >800 m
|
|
|
Recognize a Standard Man under 1/4 Moon: >1000 m
|
|
|
Recognize a Vehicle under Starlight: >1000 m
|
|
|
Recognize a Vehicle under 1/4 moon: >1500 m
|
|
Bore Sight
|
Factory Bore Sight to within .5 MOA of alignment to the day
scope point of impact
|
|
Bore Sight Retention
|
<0.5 MOA over 300 rounds, 300 WIN MAG firing Schedule
|
|
Weapons Certification
|
Tested for use on weapons up to and including .50 caliber
rifles
|
|
Cheek Weld
|
Unchanged
|
|
Eye Relief
|
Unchanged
|
|
Bullet Impact
|
Unchanged
|
|
DIMENSIONS
|
|
Weight
|
2.9 lbs (1.32 kg)
|
|
Size
|
9.6" (244 mm) long
|
SPECIFICATIONS (Preliminary)
| SIZE: |
|
9.6” (244 mm) long |
| WEIGHT: |
|
2.9 lbs. (1.32 kg) |
| FINISH: |
|
Flat Black Matte or Desert Sand Brown, Corrosion Resistant |
| CONTROLS: |
|
On/Off Gain Control Knob, Focus Ring |
| POWER: |
|
One standard AA battery, or one DL123 battery (Single Interchangeable Battery™) |
| BATTERY LIFE: |
|
AA Exceeds 24 hours, DL123 battery exceeds 36 hours |
| MOUNT: |
|
KAC 26597 for Quick Attach /Detach to MIl-STD-1913 Rail or equivalent mounting surface |
| WATERPROOF: |
|
3 ft. for 4 hours |
| OPTICAL CHARACTERISTICS |
| Lens Design: |
|
120MM Refractive Telephoto Lens |
| Magnification: |
|
Unity |
| Focus Range: |
|
20 Meters to Infinity |
| Boresight: |
|
Patented (US Patent 7,142,357) alignment technology proven in thousands of delivered sniper sights |
| Image Intensification: |
|
ANVIS 18mm Tube |
|
PERFORMANCE CHARACTERISTICS
Range:
Recognize a Standing Man under Starlight: >800 m
Recognize a Standing Man under ¼ Moon: >1000 m
Recognize a Vehicle under Starlight: >1000 m
Recognize a Vehicle under ¼ Moon: >1500 m
Boresight:
Factory Boresight to within .5 MOA of alignment to the day scope point of impact
Boresight Retention:
<0.5 MOA over 300 rounds, 300 WIN MAG firing Schedule
Weapons Certification:
Tested for use on weapons up to and including .50 caliber rifles
Cheek Weld: Unchanged
Eye Relief: Unchanged
Bullet Impact:
Unchanged
