EOTech HHS1
DISCONTINUED
Take advantage of the EOTech HWS' ability to incorporate fixed and flip-up magnifiers.
* Vastly improved accuracy at medium
range distances
* Increased target recognition and identification at greater
distances
* Achieves extremely rapid transition from Close Quarters Battle
to medium range targeting - and back again
* Retro-fits to all current HWS models - providing an instant
upgrade path
* The unique Holographic technology allows the center dot to
remain 1 MOA in size, while the angular size of the target is
magnified
* Zero is maintained in the HWS and not in the magnifier - you
never lose zero, no matter if you are targeting through the
magnifier or only through the HWS

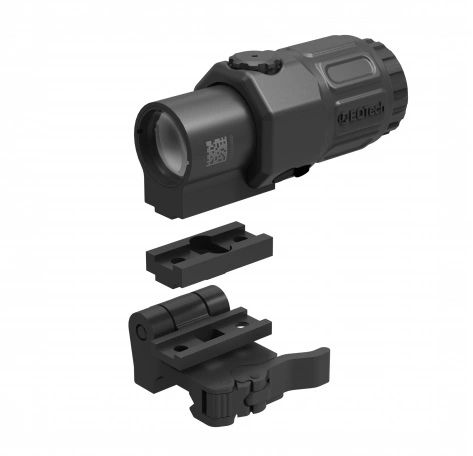

* The magnifier mount provides elevation and azimuth adjustment
to allow the reticle to be centered in the FOV of the magnifier
Take advantage of the EOTech HWS' ability to incorporate fixed and flip-up magnifiers.
* Vastly improved accuracy at medium
range distances
* Increased target recognition and identification at greater
distances
* Achieves extremely rapid transition from Close Quarters Battle
to medium range targeting - and back again
* Retro-fits to all current HWS models - providing an instant
upgrade path
* The unique Holographic technology allows the center dot to
remain 1 MOA in size, while the angular size of the target is
magnified
* Zero is maintained in the HWS and not in the magnifier - you
never lose zero, no matter if you are targeting through the
magnifier or only through the HWS
* The magnifier mount provides elevation and azimuth adjustment
to allow the reticle to be centered in the FOV of the magnifier

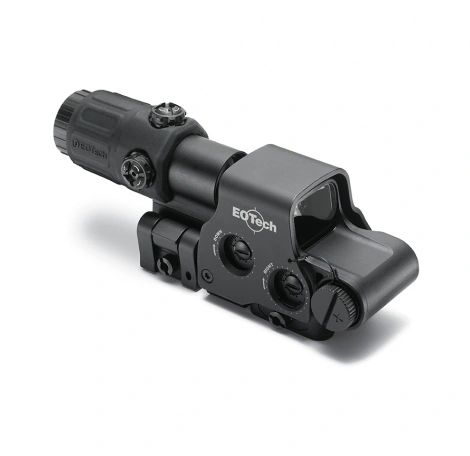

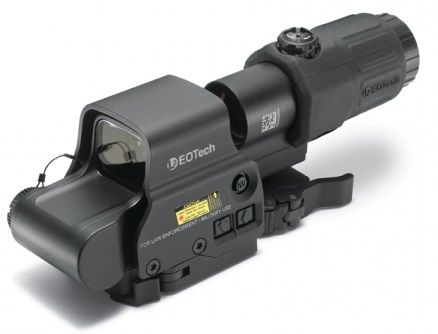

HHS I Holographic Hybrid Sight
The EXPS3-4 is configured with a new ballistic matching reticle image for the M4 carbine. The battle tested circle/dot reticle will be offered along with a series of 1 MOA aiming dots that are vertically aligned and calibrated specifically for the ballistic drop of .223 caliber ammunition. The reticle provides 4 aiming dots for target distances of 0-300m, 400m, 500m, and 600m. The use of a magnifier is strongly recommended.
*Aiming dots may not be distinguishable from each other
without magnification.
*Single transverse 123 battery to reduce sight length
*Ballistic reticle specific to .223 caliber munitions
*Compatible with Gen I-III+ Night Vision Systems (tandem
operation)
*Shortened base only requires at most 2 3/4 inch of rail
space
*Battery cap and latch are eliminated and replaced with a
simple O-ring, tethered cap; better sealing is achieved
*Average battery life at brightness level 12 is roughly 600
hours
*Side buttons, NV compatible with an adjustable, locking,
quick detach lever for easy attachment and removal
Operation
Optics: Transmission holography - parallax free
Magnification: 1x
Eye Relief: Unlimited
Length/Width/Height: 8.1 x 2.2 x 2.8 in Weight: 23.1 oz (689 grams)
Temperature: -40° to 160° F
Waterproof: Submersible to 33 ft depth
Sealing: Fog Proof internal optics
Adjustment (per click): 0.5 MOA (1/2" at 100 Yards)
Adjustment Range: +/- 40 MOA travel
Mount: 1" Weaver or (MIL-STD-1913) rail. Adjustable for width
variation
Return to Zero: Repeatable to within 2 MOA after re-mounting
Night Vision Compatibility: 10
Brightness settings (Generation
I-III+)
Heads-Up-Display Window
Optical Surfaces: Anti-glare coating
Window Dimensions: 1.20" x 0.85" (30 x 23mm)
Front Window Material: 1/8" solid glass
Rear Window Material: Shatter resistant laminate (3/16" thick)
Field of View: (100 Yards): 30 Yards (28m) at a 4" eye relief
