(9020 Discontinued) and Out of Stock See 9021 for an alternate Pistol LASER
DBAL-PL (Pistol Light) Black Housing w/Class IIIa Red Pointer (<5mW), Class I [Eye Safe] IR Pointer (<0.7mW), IR LED Illuminator (600mW), White LED Light (400 Lumen)

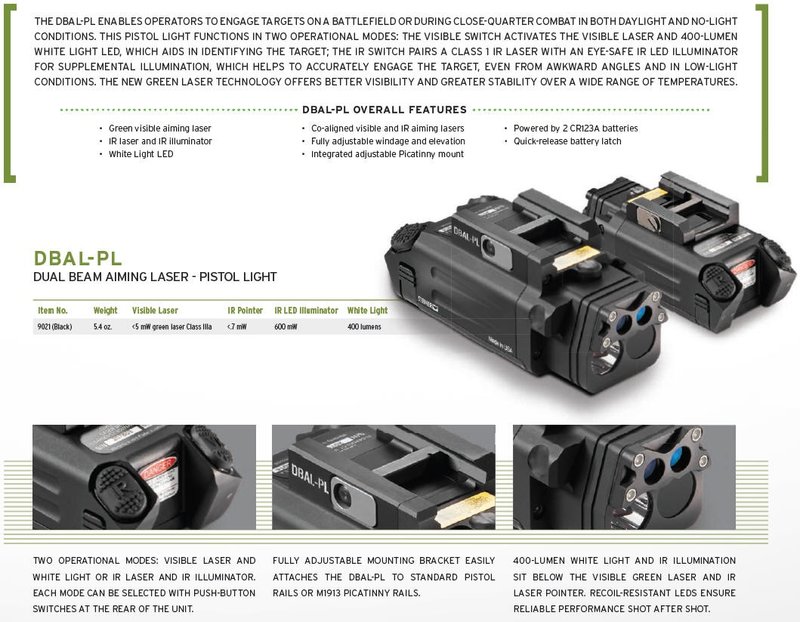

The DBAL-PL enables operators to engage targets on the battlefield or
during close quarter combat in both light and no light conditions. The DBAL-Pl
functions in two operational modes: The visible switch activates the visible
laser and 400 lumen white light LED; while the IR
switch pairs a Class 1 IR laser with an
eye-safe IR LED illuminator for supplemental
illumination. New temperature insensitive green laser technology provides
better visibility and greater stability over a wide-range of temperatures.
Images shown below with product attached. (Suggested use, handgun not included)

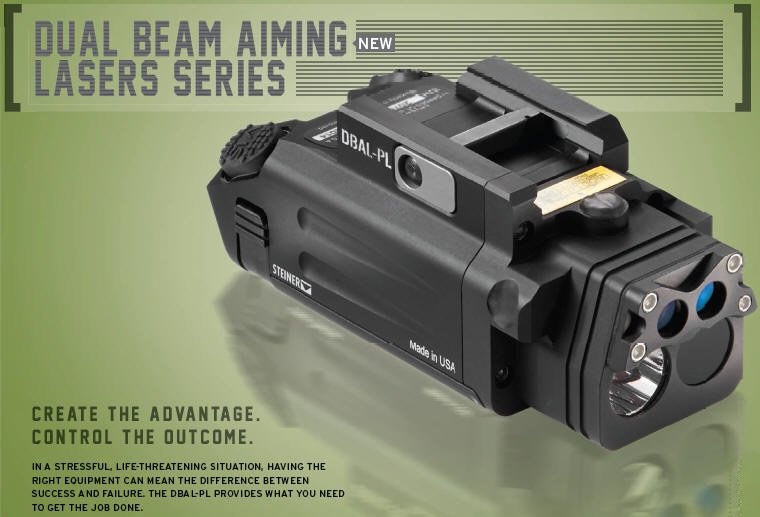

Laser Devices Inc introduced
a laser/light combination unit called the DBAL-PL (Dual
Beam Aiming Laser Pistol Light). Now under new management, the Burris/Steiner DBAL-PL is designed
to mount on the accessory rail of a pistol. It combines
a 400-lumen white light with a Red IR LASER.
Features:
* Two operation modes
* Visible mode: White light & Visible
(Red) LASER combined
* IR mode: IR laser & IR illuminator
combined
* Co-aligned visible & IR LASER's
* Recoil-resistant white light LED technology
* Fully adjustable mounting interface allows for use on
standard pistol rails or M1913 rail systems
* Quick release battery cap facilitates on the fly
battery changes without removal from the weapon
* Meets MIL-STD-810G environmental testing
* Waterproof to ≥5 meters
* Manufactured in the U.S.A.
* Weight 5.4 oz.
The DBAL-PL is
Burris/Steiner newest civilian legal product—available
for everyone to purchase. This rugged, compact device makes your pistol an
equal to the carbine in aiming and lighting capabilities and allows the
pistol to be a usable tool in conjunction with night vision devices.
The DBAL-PL features two operational modes—
Visible mode: 400 lumen
white light and choice of 5mW Red (9020) or
Green (9021)
LASER; IR
mode: Class 1 Eye-Safe IR Laser with 600mW IR LED
Illuminator.
Additional features include co-aligned visible and
IR aiming lasers with fully adjustable windage
and elevation. The DBAL-PL mounts to standard pistol rails or M1913 rail
systems using a fully adjustable mounting interface for retention on
any rail and a quick release battery compartment allows for battery changes
on the fly while mounted.
-
Manufacturer: Steiner
Dimensions: 3.46”(L) x
1.63”(W) x 1.32”(H)
Weight:
5.4 oz. (w/ Battery)
Housing: Aircraft Aluminum
6061T-6
Finish: Hard Anodized
Power:
Two (2)
CR123A Batteries
Battery Life: 1.75 Hours
Waterproof: 5 meters
Warranty: 3 Years
Infrared Laser Pointer Spec
IR
Laser Class: Class 1 (Eye
Safe)
IR
Laser Output: 0.7 mW /
<0.2mW
IR
Laser Divergence: <0.8
mRad
IR
Laser Wavelength: 850 nm
IR
Laser Range: 250m / 5m (Night / Day)
Visible Laser Spec
Visible Laser Class:
IIIa Red (9020) or
Green (9021)
Visible Laser Output: <5mW / 1mW
Visible Laser Divergence: <0.8 mRad
Visible Laser Wavelength:
635 nm (Red), 515-525 nm (Green)
Visible Laser Range:
250m
/ 5m (Night / Day – Red),
750m / 15m (Night
/ Day – Green)
IR Illuminator Specs
Class 1 (Eye Safe)
IR
Illuminator Output: <600
mW
IR
Illuminator Divergence:
18°
IR
Illuminator Wavelength:
850 nm
IR
Illuminator Range: 100 m
White Light Spec
Output: 400 Lumens
Includes: DBAL-PL Module,
Operator’s Manual, Batteries
