ELCAN TFOV139
Free Flip Cover Set Included with the Purchase of this sight
The unique three field-of-view design maximizes combat effectiveness by providing precision close quarter, mid-range, and long range engagement capability.
The 1X FOV (Field-of-View) provides a 16° viewing angle and provides an extremely fast “both eyes open” target acquisition capability maximized by a red aiming dot and at least 70mm eye relief. This provides the Close Quarters "CQB" element necessary for entry teams. The second setting provides a 3X Magnified Sight with a Field-of-View of 6°, range compensating reticle, and precision mid-range marksmanship capability. At the 9X setting, a crystal clear 2° viewing angle provides unmatched long-range target detection, identification, and engagement capability, all in a compact, lightweight 1264mm, 829g (scope and mount) telescopic package. The magnification of the SpecterTR™ Tri-FOV weapon sight by ELCAN switches easily and quickly using a 3-position dial mounted on the side of the optical housing.
Armament Technology Inc., the distributor of the ELCAN optics, unveiled
the switchable ELCAN SpecterTR 1-3-9x Optical Weaponsight at SHOT Show 2014.
With a MSRP of $3,888.00, the new ELCAN SpecterTR (Tri-Role) competes against the
new high-end 1-8x scopes with the traditional scope design.
Like their popular SpecterDR DFOV14 (1X - 4X) & DFOV156 (1.5X - 6X) models, the new ELCAN SpecterTR also utilizes a prism based optical design. The new SpecterTR model features a switchable 1X-3X-9X Magnification, similar to the DR model, as there is no "in-between" in each of those three magnification settings.

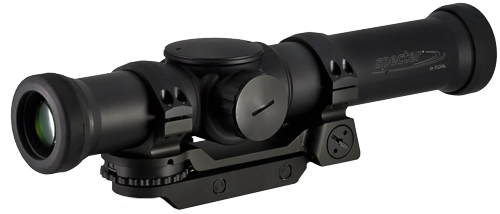

SpecterTR 1-3-9 Optical Sight
| TFOV139 SpecterTR System Technical Specifications | ||
|
Eye Relief
|
● | (1X) 78.6mm, (3X) 70.4mm, (9X) 74.1mm |
|
FOV @ 1X
|
● | 16º at 1X |
| FOV @ 3X | ● | 06º at 3X |
| FOV @ 9X | ● | 02º at 9X |
|
Magnification
|
● | Unity 1X, Mid Range 3X or Telescopic 9X |
|
5.56
|
● | M4, M16, MK46, M249 |
| 7.62 | ● | M240, MK43 MK48, M60E4 |
|
Ballistic Correction
|
● | 100 to 800m for 5.56 Carbine |
|
Ballistic Correction
|
● | up to 1000m for 7.62 |
|
Reticle
|
● | Center Crosshair at 100m |
|
Reticle
|
● | Ranging lines to 800m for 5.56 and to 1000m for 7.62 |
|
Reticle
|
● | Target Ranging Pattern |
|
Reticle Adj.
|
● | 5 Red Dot Brightness Settings for 1X Magnification Night Vision Compatible |
|
Reticle Adj.
|
● | 5 Reticle Illumination Settings for 3X and 9X Night Vision Compatible |
|
Combat Modes
|
● | CQB |
| ● | Long Range | |
| ● | Machine Gun | |
| ● | Iron Sight | |
|
Weight
|
● | 1.9lbs. (850g), oz. |
|
Size in mm
|
● | 265 x 81 x 74 |
|
Size in inches
|
● | 10.43" x 3.19" x 2.91" |
|
Internal Battery
|
● | CR2032 |
|
Entrance Pupil Dia.
|
● | (1X) 12mm, (3X) 30mm, (9X) 30mm |
|
Exit Pupil Dia.
|
● | (1X) 11.7mm, (3X) 10mm, (9X) 3.33mm |
|
Coaxial Alignment
|
● | <1.5 MOA between fields |
|
Fixed Focus Range
|
● | 20m to infinity |
|
Adjustment Range
|
● |
Elevation +90 MOA / -30 MOA minimum Azimuth +60 MOA / -60 MOA minimum |
|
Adj. Resolution
|
● | 0.1 mil/click in Elevation and Windage |
|
Battery Life
|
● | 300 min. to 2000 hours typical |
|
Exterior Finish
|
● | Anodized Aluminum, Black |
|
Operating Temp
|
● | -50°F to +120°F |
|
Mount
|
● | Quick-Disconnect Mount for Picatinny Rail |
|
Shockproof
|
● | 450 g's |
ELCAN uses only the best German glass in their sights. While the new SpecterTR
model retains the ELCAN signature external adjustment base, it has been
upgraded to use the MIL system. Each click is now 0.1 MIL of adjustment.
The ELCAN SpecterTR offers a true 1x magnification.

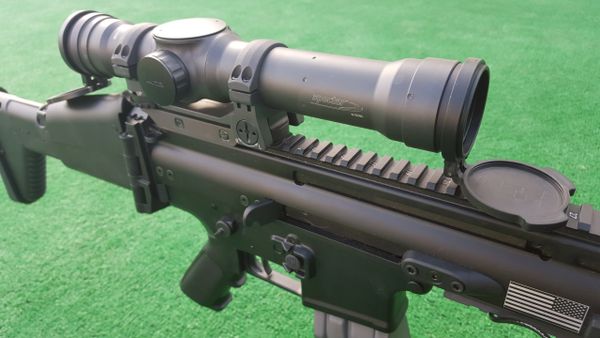

To protect that glass, you should also invest in a set of Flip-Up Lens Covers.
The new SpecterTR uses the standard CR2032 lithium battery instead of the lesser common DL-1/3N battery. The reticle is illuminated in all three magnification settings. At the 1x, the reticle is a daylight visible red color dot. At the 3x and 9x magnifications, the whole reticle is illuminated. The ELCAN SpecterTR will be offered with two different reticles for the 5.56mm caliber w/BDC (Bullet Drop Compensation) to 800 meters, and the 7.62 x 51mm NATO version w/BDC to 1000 meters.

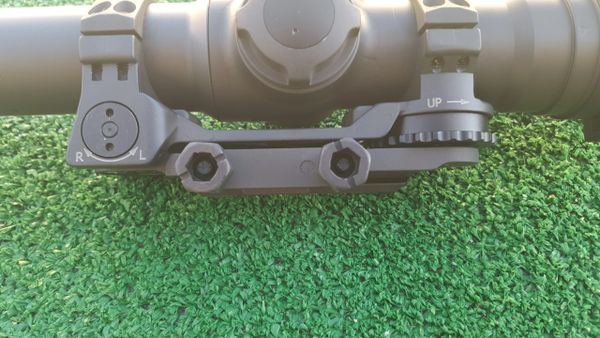

Instead of the switch-lever utilized on the DR model, the new SpecterTR uses a large dial on the left side of the optic for changing the magnifications. The same dial also switches the reticle illumination types between each magnification setting. There’s also the possibility of having a different Quick-Disconnect or QD mount on the production model. For the new SpecterTR, Armament Technology and ELCAN no longer uses the ARMS QD lever, which was a U.S. military requirement on the previous ELCAN sights.
The ELCAN SpecterTR is longer and heavier than the 1x/4x model, and is 10.4 inches in length and weights in at 30.4 ounces with the integral external mount base. However, the ELCAN SpecterTR is slightly shorter than other 1-8x scopes and the weight is comparable when a heavy duty SPR rings is added to those.
|
|
|
DFOV14 |
DFOV156 |
TFOV139 |
|
Eye Relief |
● |
70mm (2.756") |
(1X) 78.6mm |
|
|
Eye Relief |
● |
70mm (2.756") |
(3X) 70.4mm |
|
|
Eye Relief |
● |
|
|
(9X) 74.1mm |
|
FOV @ 100 Yards |
● |
26º @ 1X / 48.8m / 146.3' |
16º @ 1.5X / 28.7m / 86' |
16º at 1X |
|
FOV @ 100 Yards |
● |
6.5º @ 4X / 11.4m / 34.2' |
4º @ 6X / 7m / 21' |
06º at 3X |
|
FOV @ 100 Yards |
● |
|
|
02º at 9X |
|
Coaxial Alignment |
● |
<1.5 MOA between fields |
||
|
Optical Axis Height |
● |
39mm |
|
|
|
Objective Lens Dia. |
● |
30mm |
42mm (1.65") |
|
|
Magnification MOA |
● |
Unity 1X 6 MOA |
1.5X 6 MOA |
Unity 1X MOA |
|
Magnification MOA |
● |
4X 1.5 MOA |
6X 1.5 MOA |
3X MOA |
|
Magnification MOA |
● |
|
|
9X MOA |
|
Ballistic Correction 5.56 |
● |
100 - 600m Carbine
|
100 - 1000m NATO |
100 - 800m NATO |
|
Ballistic Correction 7.62 |
● |
100 - 1000m NATO |
100 - 1000m NATO |
|
|
Reticle Description |
● |
Dual-Thickness Ballistic Crosshair w/Red Dot, VSOR Rangefinder, Area Fire (Beaten Path) Circles |
||
|
Reticle Model |
● |
C1/T1 = 5.56 (CX5395) ; C2/T2 = 7.62 (CX5396) |
C1 = 5.56 (CX5455) |
C1 = 5.56 (CX) |
|
Illumination Source |
● |
Battery Powered LED (650nm) |
||
|
Crosshair Illumination |
● |
5 Brightness Settings Night Vision Compatible |
||
|
Red Dot Illumination |
● |
5 Brightness Settings Night Vision Compatible |
||
|
CQB Offsets |
● |
|
<44mm @ 60m |
|
|
Base Requirement |
● |
MIL-STD-1913 Picatinny Rail (Weaver Compatible) |
||
|
Attachment |
● |
A.R.M.S. Dual Throw Levers |
Quick-Disconnect Mount |
|
|
Combat Modes |
● |
Iron Sight |
||
|
Combat Modes |
● |
CQB |
||
|
Combat Modes |
● |
Long Range |
||
|
Combat Modes |
● |
Machine Gun |
||
|
5.56 |
● |
M4, M16, MK46, M249 |
||
|
7.62 |
● |
M240, MK43 MK48, M60E4 |
||
|
Weight w/Mount |
● |
1.485 lbs / 674g / 23.8 oz. 1.687 lbs / 765g / 27 oz. |
1.9 lbs / 850g / 30.4 oz |
|
|
Size in mm (L x W x H) |
● |
153 x 74 x 78 |
183 x 75 x 73 |
265 x 81 x 74 |
|
Size in inches (L x W x H) |
● |
6.024 x 2.913 x 3.071 |
7.205" x 2.953" x 2.874" |
10.43 x 3.19 x 2.91 |
|
Zeroing Range |
● |
± 60 MOA |
± 60 MOA |
|
|
Adjustment Resolution |
● |
0.5 MOA (Minute of Angle) |
0.1 mil/click Elevation & Windage |
|
|
Adjustment Range EL |
● |
120 MOA (Minutes of Angle) |
Elevation +90 MOA / -30 MOA min |
|
|
Adjustment Range AZ |
● |
120 MOA (Minutes of Angle) |
Azimuth +60 MOA / -60 MOA min |
|
|
Entrance Pupil Dia. |
● |
28mm (1.102") |
42mm (1.654") |
(1X) 12mm |
|
Entrance Pupil Dia. |
● |
28mm (1.102") |
42mm (1.654") |
(3X) 30mm |
|
Entrance Pupil Dia. |
● |
28mm (1.102") |
42mm (1.654") |
(9X) 30mm |
|
Exit Pupil Dia. |
● |
8mm (0.315") |
7mm (0.2756") |
(1X) 11.7mm |
|
Exit Pupil Dia. |
● |
8mm (0.315") |
7mm (0.2756") |
(3X) 10mm |
|
Exit Pupil Dia. |
● |
8mm (0.315") |
7mm (0.2756") |
(9X) 3.33mm |
|
Fixed Focus Range |
● |
20m to infinity (.7874") |
||
|
Nominal Focus |
● |
37.5m @ 1X / 150m @ 4X |
105m @ 1.5X / 300m @ 6X |
|
|
Battery Cover |
● |
Lanyard Retained |
|
|
|
Internal Battery |
● |
DL 1/3 N, 3V Lithium |
CR2032 |
|
|
Battery Life |
● |
600 Hrs Minimum @ Max Brightness / 3000 Hrs Typical |
300 Hrs Minimum @ Max Brightness / 2000 Hrs Typical |
|
|
Exterior Finish |
● |
Class III Hard Anodized Aluminum |
||
|
Color Options |
● |
Grey/Black or FDE |
Grey/Black |
Grey/Black |
|
Operating/Storage Temp |
● |
-50°F to +120°F (-45.56°C to +48.89°C) |
||
|
Waterproof |
● |
66' for 2 hours |
||
|
Environment Salt Fog |
● |
>40 Hrs @ 5% |
||
|
Environment Chemical |
● |
NBC & Cleaning |
||
|
Shockproof |
● |
450 g's |
||
