ARMS Mounts
A.R.M.S.®, Inc. is the original designer and manufacturer of the dovetail dimensions for Military and Civilian use since 1980. Those original A.R.M.S.® dovetail dimensions were eventually adopted in 1995 as the Mil-Std 1913 Rail.
* M16A1A2/AR15 Mount
* Universal mounting platform
* Accepts A.R.M.S.® #21 STANAG Rings
* Accepts Standard #22 Dovetail Rings
* NATO STANAG, M1913 Military Standard and Weaver type scopes.
ARMS#02 M16 Scope Mnt NSN 5855-01-299-7777
The finest scope mount designed for the M16A1/A2 rifle.
This mount features the A.R.M.S.®/SWAN® Universal mounting platform, accepting NATO STANAG and Weaver type scopes and rings. It attaches via a unique self-locking thumb nut that fits snugly in the hole in the carry handle for continuous zero hold. The #02™ carry handle mount features a wide angle TV shaped see-thru channel for use with iron sights.
Also fits detachable carry handle models.
Weight - 2.6 oz
Length: Approx. 5"
ARMS#02EXT Extended M16/AR10 6.5" Mount
NSN 1240-01-574-2198Mount for the AR-10 Rifle´s carry handle. Will Also work with AR15/M16. 100% MADE IN THE USA.
This is a longer version of our widely used #02™ carry handle mount. It measures 6.5″ long and attaches via a unique self-locking thumb nut that fits snugly in the hole in the carry handle for continuous zero hold. The #02™ extended carry handle mount features a wide angle TV shaped see-thru channel for use with iron sights.Weight: 3 oz
ARMS#10 ACOG Channel Mount / Thumb Nuts
Multi-position channel mount with self-locking thumb nuts. The #10 mount is extremely rugged and versatile. The finish is MIL-SPEC black hardcoat, and provides the eye relief options needed for many weapons.
ARMS#12 Leupold CQ/T Throw Lever Mount
Engineered to provide the optimum combination with the New Leupold Multi-Fastened CQ/T Optic. The fast action of the optic is enhanced by the quick on/off of the MIL-SPEC throw levers and provides a rugged no nonsense system of the future.
ARMS#15 Trijicon Reflex Throw Lever Platform
A.R.M.S. has succeeded in developing an ultra low profile mounting platform for the Trijicon® reflex sight. The #15 platform is attached to the bottom of the sight by 3 screws that are supplied with the platform, and provides 2 positive locking throw levers with A.R.M.S.® patented no-mar buffer pads, no gun-smithing required. The #15 Reflex mount platform meets or exceeds all mil-spec requirements just like all other A.R.M.S.® standard mil-spec products.
ARMS#15S Spacer for 315 Mount
Reflex Mount Spacer - Adds a little height to the #15 mount.
ARMS#16A Carry Handle Mount for Aimpoint
The #16A allows for the mounting of the Aimpoint M2/ML2 & other Comp. sights to be mounted directly to the carry handle of the AR-15/M16/M16A1/M16A2/M4. 30mm ring mount. The see through design allows for use of iron sights with the mount in place.
ARMS#17 Single Lever Tri-Lock Mount
NSN 5340-01-530-3555.
Single Lever Tri-Lock mount was developed by A.R.M.S.® as a small commercial compact universal platform.
Two (2) solid attachment feet on the right side are firmly held in place with the A.R.M.S.® steel locking foot and lever on the left side. Standard width channel, accepts rings, various dovetail rails, universal platforms and adapters in a modular fashion. Repeat Zero Hold with quick easy on and off. US Pat. No. 5276988, 7493721, D573443
* Single Lever Tri-Lock mount developed for small pocket scopes and laser attachments
* Two solid attachment feet on the right side
* Steel locking foot and lever on the left side.
* Standard STANAG width channel
* Secure LASER/Night Vision Optic attachment at 2 points.
* Repeat Zero Hold with easy on and off.
ARMS#17MKII Single MKII Lever Tri-Lock Mount
The new MK ll Levers featuring a built in precision adjustment wheel allowing finger tip (no tool) selection to desired tension to fit variations in 1913 mil-standard dimensions. The mounts adjustment wheel comes pre-gauged and locked to the center of the mil std. dovetail specs. The hash marks to the left or right of the adjustment wheels white marked indicator line, represent .002. Standard width channel, accepts rings, various dovetail rails, universal platforms and adapters in a modular fashion. Repeat Zero Hold with quick easy on and off. US Pat. No. 5276988, 7493721, D573443
ARMS#17DL Dual Throw Lever Mount
Dual Throw Lever® Mount attaches to the Surefire® Flashlight M900 series. The dual Throw Lever® mount for the Surefire® Flashlight M900 series to attach to a Mil-Spec 1913 rail, providing a more secure mounting option than a single Throw Lever®.
ARMS#17DRMKII Dovetail Single Throw Lever MKII Mount
Dual Throw Lever® w/MKII Mount attaches to the Surefire® Flashlight M900 series. The dual Throw Lever® MKII Mount for the Surefire® Flashlight M900 series to attach to a Mil-Spec 1913 rail, providing a more secure mounting option than a single Throw Lever®.
ARMS#19 Weaver Base to NATO STANAG/M1913 Rail
* Weaver
base to 1913 Rail/NATO STANAG (Throw lever)
*
Aluminum base
*
Secured by Steel Feet and Levers
* No-mar
patented Buffer pads
* Interfaces to
M16A1A2 and M4

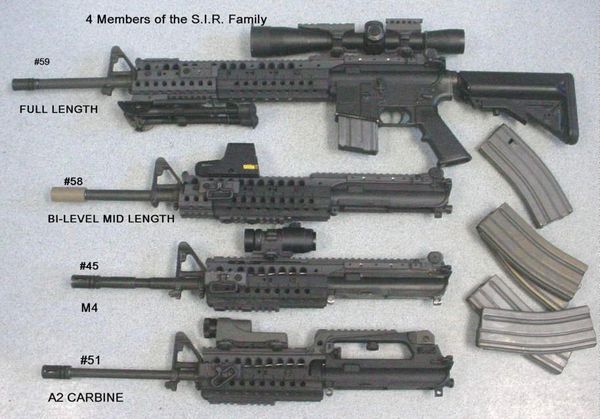

S.I.R. (Selective Integrated Rail) System
The Most Advanced Handguard in the World The A.R.M.S.® S.I.R. System has more unique and helpful features for the professional user than all other devices combined. Only the A.R.M.S.® S.I.R. System allows you to have dovetail rails where you want them and not where someone else decided for you. No other system keeps the weapon cool during firing as the A.R.M.S.® S.I.R. System
